MEDICAL TEMPERATURE LOGGER WITH EXTERNAL PROBE (105Q)



Designed to accurately monitor the temperature of mission critical refrigeration units, ensuring that the contents remain at the critical temperature required for your application. The ISL105Q is battery powered, wireless and simple to install at any location. The ISL105Q is available either as an Invisible Systems LoRa or a LoRaWAN compliant device, for connection to Invisible Systems’ own gateways or LoRaWAN networks

  • Temperature: -40 to +125°C, accuracy: ±0.25°C (typical) from -40°C to +125°C±0.5°C (maximum) from -20°C to +100°C±1°C (maximum) from -40°C to +125°

  • Sensor is equipped with 1m long external probe

  • Measurement period: 30 seconds to 60 minutes (configurable by user)

  • Ability to incorporate up to 4 temperature probes

  • Battery ensures up to 5 years of maintenance-free operation

  • Add Real-Time Online and an Invisible Systems Gateway to build a real-time monitoring system

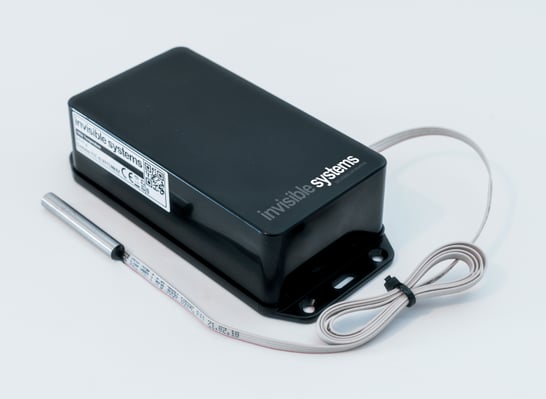

105Q - 45 Deg

KEY FEATURES

battery (1)

Long Battery Life

Our sensors have been designed to have a battery life of up to 10 years, so you don't have to worry about changing them frequently.

bell (1)

Proactive Alarm System

Pro-active alerts ensure that your team can prevent temperatures breaching critical levels, and so safeguard patient well-being.


patient

Improved Patient Safety

By ensuring that your medical fridges are always at the correct temperature, you improve the potency and reliability of medications and vaccines.

website (1)

Real-Time Online

Together with Real-time Online, the sensors enable constant monitoring, deliver pro-active alerts on threshold breaches and generate bespoke reports.

two-settings-cogwheels (3)

Simple Set-Up

Pro-active alerts ensure that your team can prevent temperatures breaching critical levels, and so safeguard patient well-being.

notes

Low Costs

Choosing wireless sensors and a cloud platform enables you to reduce your installation and maintenance costs.

ADDITIONAL INFORMATION

CONFIGURABLE THRESHOLDS

Configurable high/low thresholds allow different transmit intervals when thresholds are crossed providing advanced edge intelligence to the network, and enable alarms to be generated by Realtime-Online™.


REAL-TIME MONITORING

Data from every sensor in your network is reported back through Invisible Systems Big Data architecture either to our Monitoring and Analytics platform Realtime-Online™, or to a partner cloud platform via our API, ensuring that your data is visible, actionable and valuable to your organisation.


LORA

The 105Q transmitter connects to the cloud via Invisible Systems cellular LoRa™ gateways, providing low power, reliable communication and long battery life. Invisible Systems can provide their in-house built Realtime-Online™ cloud portal to make this an ideal low-cost end-to-end solution.

LORAWAN

The ISL105Q is a LoRaWAN certified device and Invisible Systems are members of the LoRa alliance. It offers both ABP and OTAA activation options and is designed to work with all LoRaWAN gateways and network servers.

TECHNICAL DATA

COMMS



Frequency/Band (LoRa): EU 868Mhz Other regions available on request

Frequency/Band (LoRaWAN): EU863-870 Other regions available on request

Expected range (line of sight): Up to 10km

Power: LoRaWAN 25mW (14 dBm) LoRa: 100mW (20 dBm)

APPROVALS

Approvals: CE, FCC, IC, Other regions available on request

FCC ID: Contains module VPYCMABZ

ICID: Contains module 722C-CMABZ

ENVIRONMENTAL



Dimensions (mm): 144x65x40

Enclosure colour: Black

Enclosure plastic type: ABS

Operating Temp Range: -20°C to +60°C

Battery: 1 x C-cell (8500 mAh)

Batteries type: Lithium Thionyl Chloride (Non rechargeable)

Expected battery life, 6 min Tx interval: Up to 5 years

Expected battery life, 6 hour Tx interval: Up to 10 years

Operating lifetime: Up to 10 years

Power type: Battery 3.6VDC

GENERAL

Measurement interval range: 30 secs - 60 mins

Tx interval range (multiple of measure intervals): 15 min - 24 hours

TEMPERATURE



Measurement Range: -40°C to +125°C

Accuracy:

  • ±0.25°C (typical) from -40°C to +125°C
  • ±0.5°C (maximum) from -20°C to +100°C
  • ±1°C (maximum) from -40°C to +125°C

Resolution/Step-size: 0.1°C

Sensor characteristics: Digital

Calibration: Optional

TEMPERATURE INPUTS



Temperature probes: Up to 4 - any combination of Pipe & Stainless steel pocket (submersible) probes

Cable: 1m PVC Ribbon

STATUS INPUTS



Digital status inputs: 2

Cable: 1m 4-core PVC (optional)



Download Datasheet
