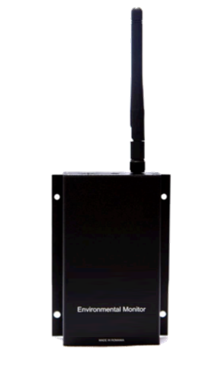

ENVIRONMENTAL MONITOR (ISL EM1030)



The ISL EM1030 Environmental Monitor is an automated, fixed monitoring station with an array of sensors that tracks a total of 11 important environmental parameters, including Temperature, Pressure, Humidity, PM1/2.5/10, Formaldehyde, Ozone, Carbon Dioxide, VOCs and Noise.
It comes in a rugged aluminium enclosure with wall mounting support, and includes a built-in air pump for active flow.



The ISL EM1030 Environmental Monitor allows for automated monitoring and improves significantly on the occasional use of handheld units. Mapping data trends becomes possible thanks to continuous surveillance. With a higher detection capability for small variations, the ISL EM1030 Environmental Monitor can trigger automated alarms if predefined thresholds are reached, improving reaction time while lowering costs.
Understanding the air quality in your environment can inform decisions to protect health.

  • 7 high quality digital sensors tracking 11 air parameters

  • Monitors Temperature, Pressure, Humidity, PM1/2.5/10, Formaldehyde, Ozone, Carbon Dioxide, VOCs and Noise

  • Built-in air pump for active flow

  • USB port for power

  • Optional alarm and notification functions using built-in speaker
  • Rugged design with aluminium enclosure and wall mounting support
  • Low power consumption
  • Compact size
Formaldehyde_Environment_Monitor

KEY FEATURES

battery (1)

Long Battery Life

Our sensors have been designed to have a battery life of up to 10 years, so you don't have to worry about changing them frequently.



bell (1)

Proactive Alarm System

Pro-active alerts ensure that your team can prevent temperatures breaching critical levels, and so safeguard patient well-being.


patient

Proven Partner

Invisible Systems are trusted by clients in both the public and private sectors. You can rely on us to deliver an outstanding level of service.

website (1)

Real-Time Online

Together with Real-time Online, the sensors enable constant monitoring, deliver pro-active alerts on threshold breaches and generate bespoke reports.

two-settings-cogwheels (3)

Simple Set-Up

Pro-active alerts ensure that your team can prevent temperatures breaching critical levels, and so safeguard patient well-being.

notes

Low Costs

Choosing wireless sensors and a cloud platform enables you to reduce your installation and maintenance costs.

ADDITIONAL INFORMATION

CONFIGURABLE THRESHOLDS

Configurable high/low thresholds allow different transmit intervals when thresholds are crossed providing advanced edge intelligence to the network, and enable alarms to be generated by Realtime-Online™.


REAL-TIME MONITORING

Data from every sensor in your network is reported back through Invisible Systems Big Data architecture either to our Monitoring and Analytics platform Realtime-Online™, or to a partner cloud platform via our API, ensuring that your data is visible, actionable and valuable to your organisation.


LORAWAN

The ISL EM1030 is a LoRaWAN certified device and Invisible Systems are members of the LoRa alliance. It offers both ABP and OTAA activation options and is designed to work with all LoRaWAN gateways and network servers.

TECHNICAL DATA

COMMS



Frequency: IN865, EU868, US915, AU915, AS923

TX power: 25mW

Antenna connection: SMA female

APPROVALS

Certifications: CE, ROHS 2017

ENVIRONMENTAL



Dimensions: 110x65x25mm

Weight: 170g

Enclosure: IP30

Mounting: Mounting support provided

Operating temperature range: 0°C to +50°C

Operating humidity range: 0%RH to 95%RH

Supply voltage: 6 - 28 V

TEMPERATURE

Range: -40°C to +85°C

Resolution: 0.5°C

Accuracy: ±1°C

Sensor lifespan: 5 years

PRESSURE



Range: 300hPa to 1100hPa

Resolution: 1hPa

Accuracy: ±0.25%

Sensor lifespan: 5 years

HUMIDITY



Range: 0%RH to 100%RH

Resolution: 1%RH

Accuracy: ±2%RH

Sensor lifespan: 5 years

PM1/2.5/10



Range: 0μg/m³ to 1000μg/m³

Resolution: 1μg/m³

Accuracy: R=0.99

Sensor lifespan: 5 years

FORMALDEHYDE



Range: 0ppm to 5ppm

Resolution: 10ppb

Accuracy: ±5%

Sensor lifespan: 2 years

OZONE



Range: 0ppm to 10ppm

Resolution: 10ppb

Accuracy: ±5%

Sensor lifespan: 2 years

CARBON DIOXIDE



Range: 400ppm to 5000ppm

Resolution: 1ppm

Accuracy: ±5%

Sensor lifespan: 5 years

VOCs



Range: 10ppm to 1000ppm (estimated for alcohol)

Accuracy: ±5%

Sensor lifespan: 2 years

NOISE



Range: 30dB to 130dB

Resolution: 1dB

Accuracy: ±10%

Sensor lifespan: 2 years

Download Datasheet
